Available in both horizontal- plug and vertical- plug versions, these quality headers simply solder to a PC board and are for the Pluggable Terminal Blocks
– Made from Polyamide66 plastic (UL94V- 0)
– 1.0mm tin- plated brass solder pins
– Excellent current and insulation characteristics.

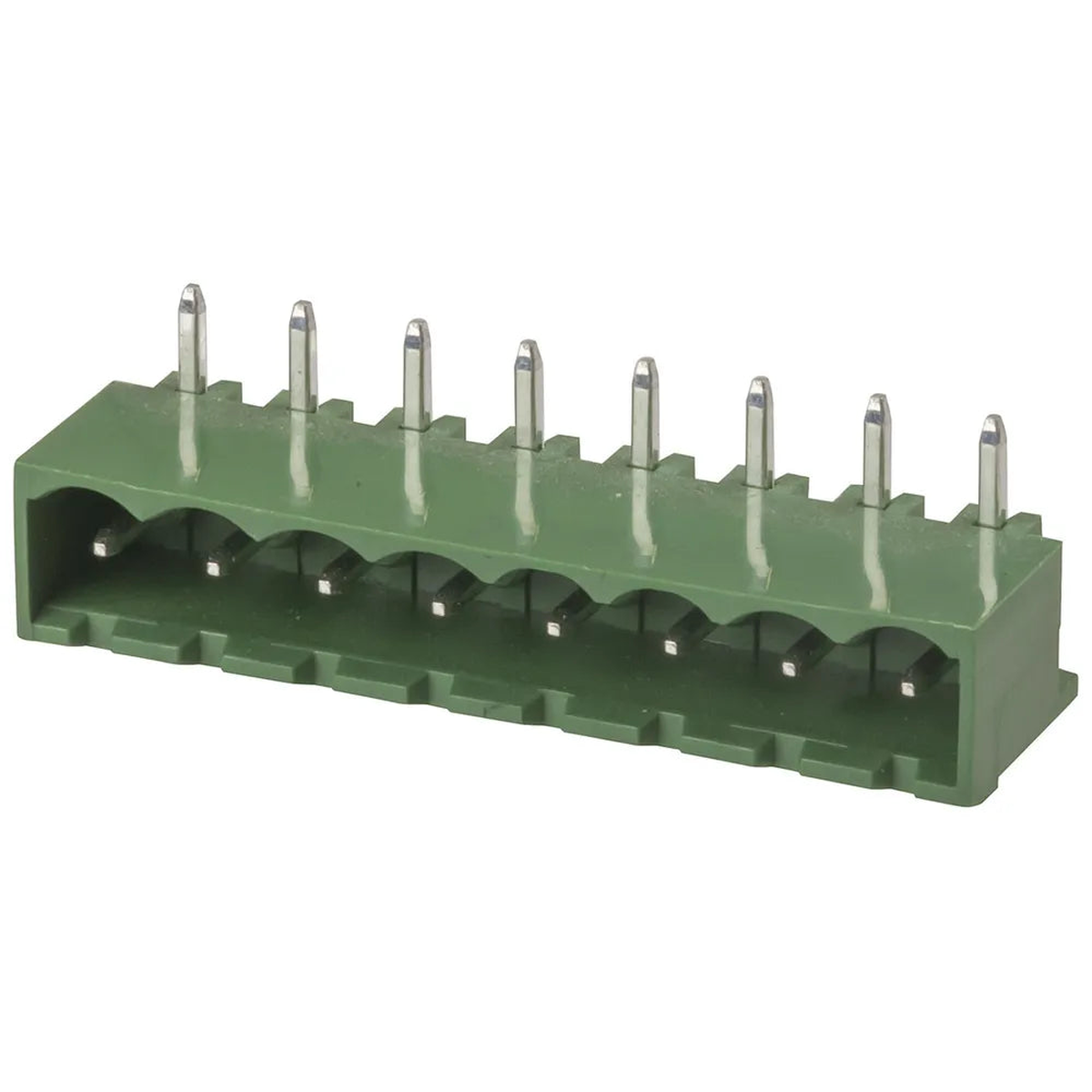

HORIZONTAL PC MOUNT

Features:

– Current rating: 12A, 300VAC
– Insulation withstands volt: 2000VAC min
– Insulation resistance: >5000M500VDC
– PCB hole diameter: 1.5mm
– Pitch: 5.08mm (0.200 inch)
– Poles 8
