The metal chassis mount Z series (D Type) connectors are designed for the audio userwhere durability, reliability and strengthacross a wide range of applications areimportant. All AC products are manufacturedto the highest quality standards and willwithstand the harshest environments. Thisrange complies with IEC268-12 and AES14-1992 standards. CSA File Number 68598.
Note:A ground tag is standard on all ACZ series connectors. Although the groundtag is intended for RFI shielding applications,Amphenol cannot guarantee its effectivenessin all cases.
The non-conductive Black polyester finishinsulates the ground tag from the shell andshould not be used in applications requiringground contact to the shell.
| Machined Contacts / Solder Bucket / Nickel Finish | |

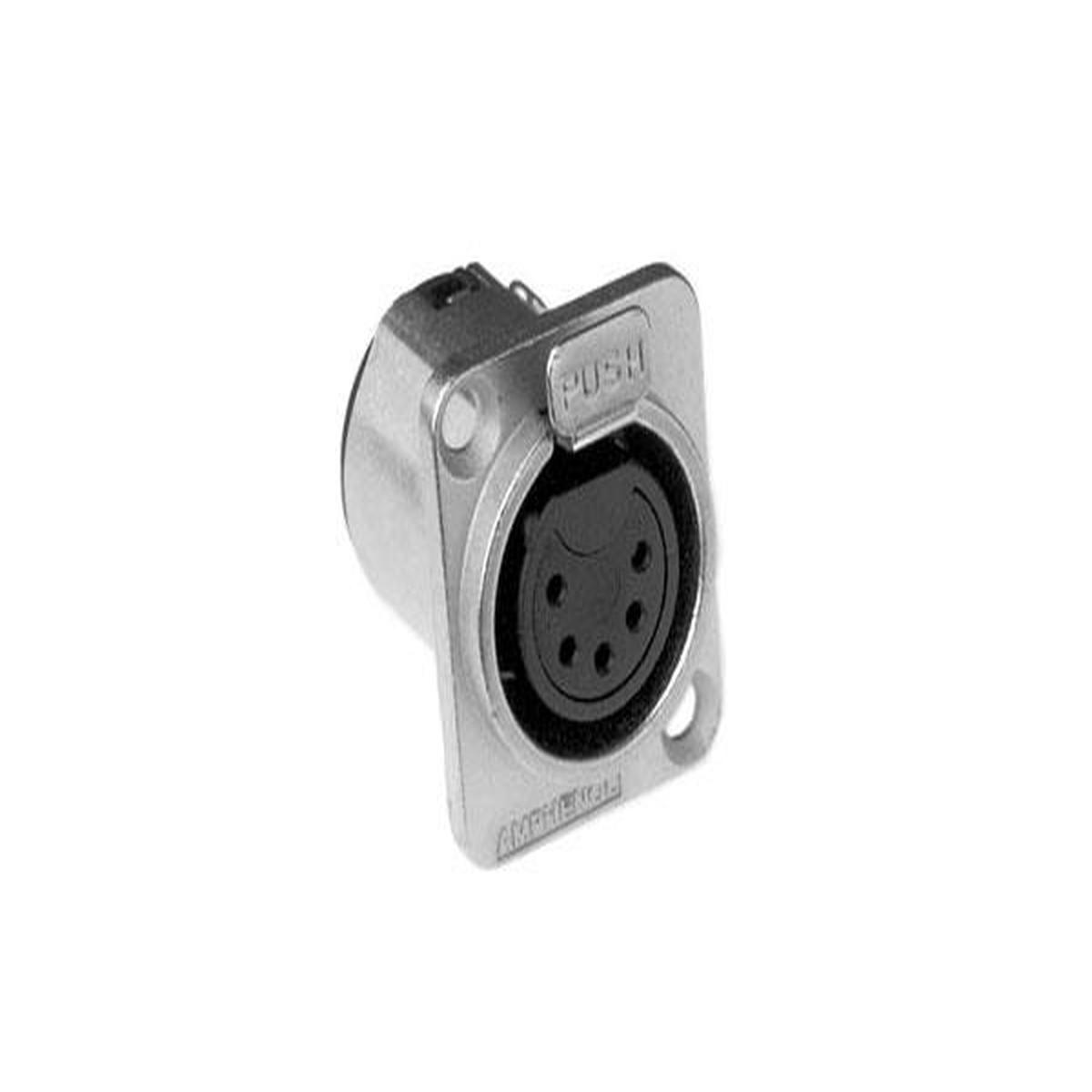

| Standard Plating | AC5FDZ |
Features
- The D size housing can be either front orrear mounted using the same panel cutout
- A leading first mate last break socket contactis standard on all female connectors (Pin 1)
- Solder cup or Vertical PCB versions
- Connectors are fitted with a groundingsystem for RFI shielding applications
- Available in 3, 4, 5, 6A and 7contact arrangements.
- Compatible with all other XLR brands
