Product Datasheet

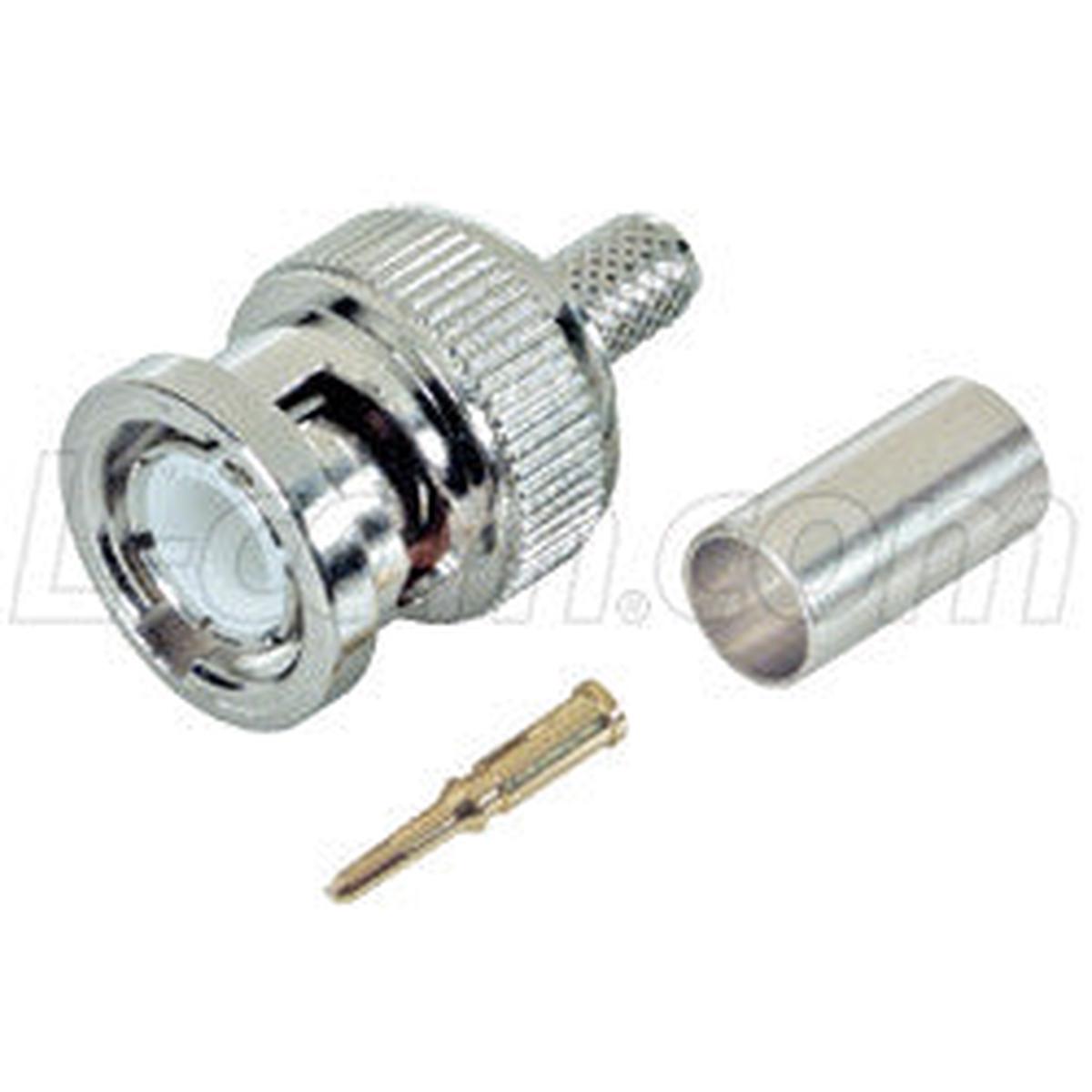

This male BNC RF connector is designed for crimp attachment to the widely used RG142/223/400 size coaxial cables utilizing readily-available crimp tools with standard crimp sizes: .213″ for the crimp ferrule and .068″ for the pin. BNC connectors connect with a twist lock, making them popular for RF applications.

Crimp style termination to RG142/223/400 style coaxial cable

50 Ohm BNC Male interface

Gold plated center contacts minimize signal loss

Machined components produce a durable connector

Associated crimp tools available
