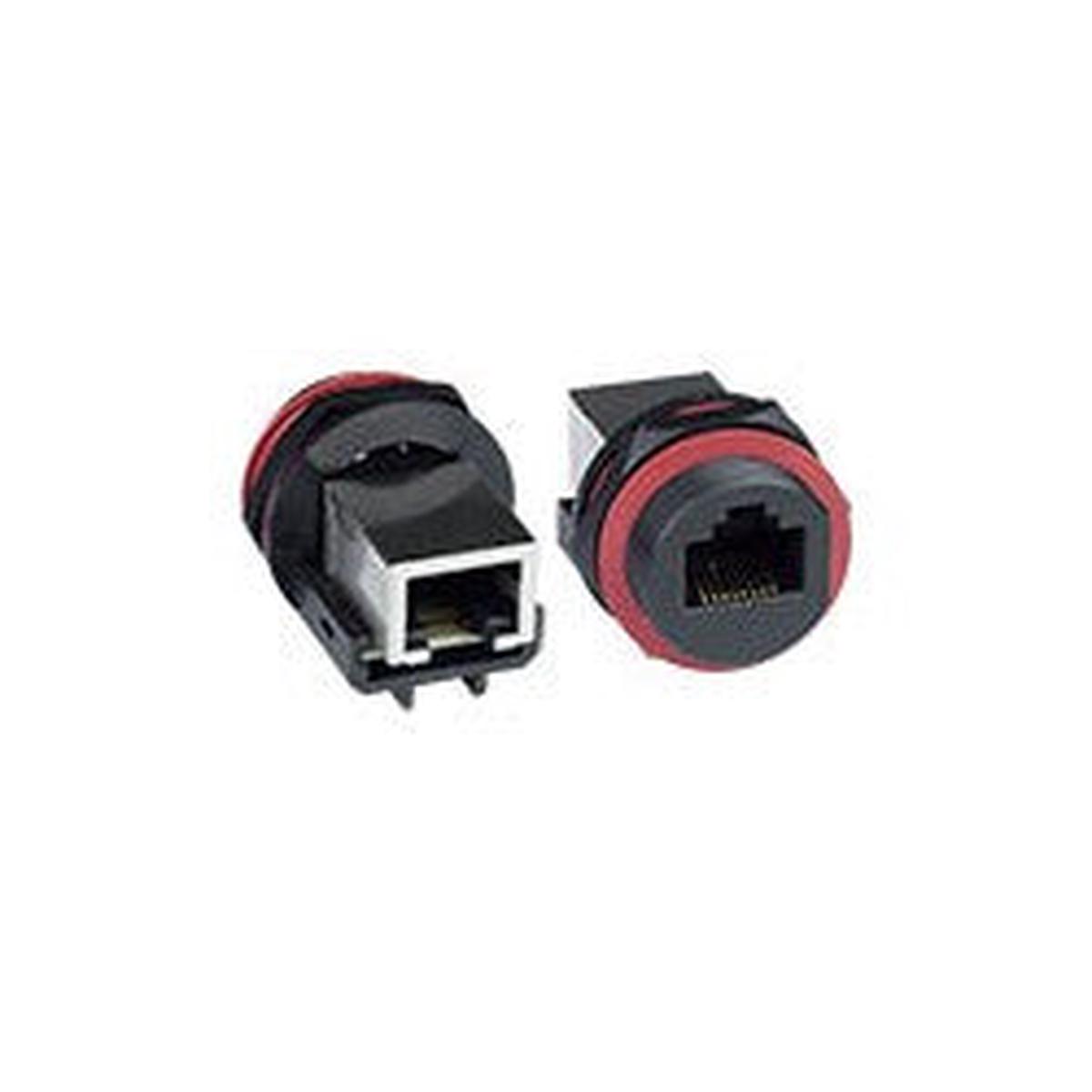

IP67 rated weatherproof RJ45 feed-thru coupler

• For harsh industrial or outdoor environments.
• RJ45 pass-thru receptacle to female RJ45 jack for use with a standard Ethernet patch cord inside.
• Compatible with existing hardware.
• Circular threaded coupling mounts case side to connect with cable side connector.
• Gasket seals provide IP67 rated water and dust protection.
• CAT5e shielded cable with a 6mm-7mm O.D. is required for waterproofing.
• Material: PBT (Polybutylene Terephthalate)
• UL 94V-0 rated plastic
• To achieve waterproof/IP67 protection, the outside RJ45 connection must be sealed with either a case side waterproof cap or a connected cable with waterproof cable gland
• Requires RJ45-5EWTP-CB or RJ45-5EWTP-CS-CBL-8I case side connector for a waterproof connection.
• Use RJ45-5EWTP-CAPT orRJ45-5EWTP-CAP to protect the connector when not in use.
