| Specification |
Details |
| Audio Supported |
Yes |
| Host Connector |
1 – USB-C Male (PD3.1 100W, 20V/5A) |
| Network Interface |
Yes |
| Output |
Perfect for Google Pixel, iPhone with MagSafe, and AirPods |
|
– Provide 15W of wireless charging to Google Pixel |
|
– Provide 7.5W of wireless charging to iPhone |
|
– Provide 5W of wireless charging to AirPods |
| Ports |
1 – USB-C PD-in PD3.1 140W (28V/5A) |
|
2 – USB-C 5Gbps & 10Gbps |
|
2 – USB Type-A 5Gbps & 10Gbps |
|
1 – Combo 3.5mm Audio Jack |
|
1 – HDMI (USB display max resolution 4K@30Hz) |
|
1 – HDMI (DP-Alt max resolution 4K@60Hz) |
|
1 – RJ45 Gigabit Ethernet |
|
1 – SD/microSD 3.0 |
|
1 – Wireless charger 15W |
| Power Source |
Bus-powered or self-powered |
| Video Output |
2 – HDMI Female |
| Warranty |
2 Year Limited |
| Performance |
2.1 Audio Channel via HDMI |
| Compatible Networks |
10/100/1000 Mbps |
| Displays Supported |
2 |
| Max Data Transfer Rate |
10Gbps |
| Max Display Refresh Rate |
60 Hz |
| Max Display Resolution |
3840 x 2160 |
| Power |
Input Current: Up to 5A |
|
Input Voltage: Up to 28V |
|
Output Current: Up to 5A |
|
Output Voltage: Up to 20V |
|
Power Consumption: 900 mA |
|
Power Delivery: Up to 140W via USB-C |
| Physical Specifications |
Cable Length: 2.28 ft (69.5 cm) |
|
Color: Space Grey |
|
Enclosure Type: Plastic |
|
Operating Humidity: < 85% non-condensing |
|
Operating Temperature: 30 to 116F (-1 to 41C) |
|
Product Depth: Body: 5.12 in. (130 mm) |
|
Holder: 3.15 in. (80 mm) |
|
Product Height: Body: 1.71 in. (43.5 mm) |
|
Holder: 1.3 in. (33 mm) |
|
Product Weight: Body: 14.7 oz (416 g) |
|
Holder: 0.8 oz (22 g) |
|
Product Width: Body: 5.12 in. (130 mm) |
|
Holder: 5.12 in. (130 mm) |
|
Storage Humidity: < 85% non-condensing |
|
Storage Temperature: 0 to 155F (-17 to 68C) |
| Package Contents |

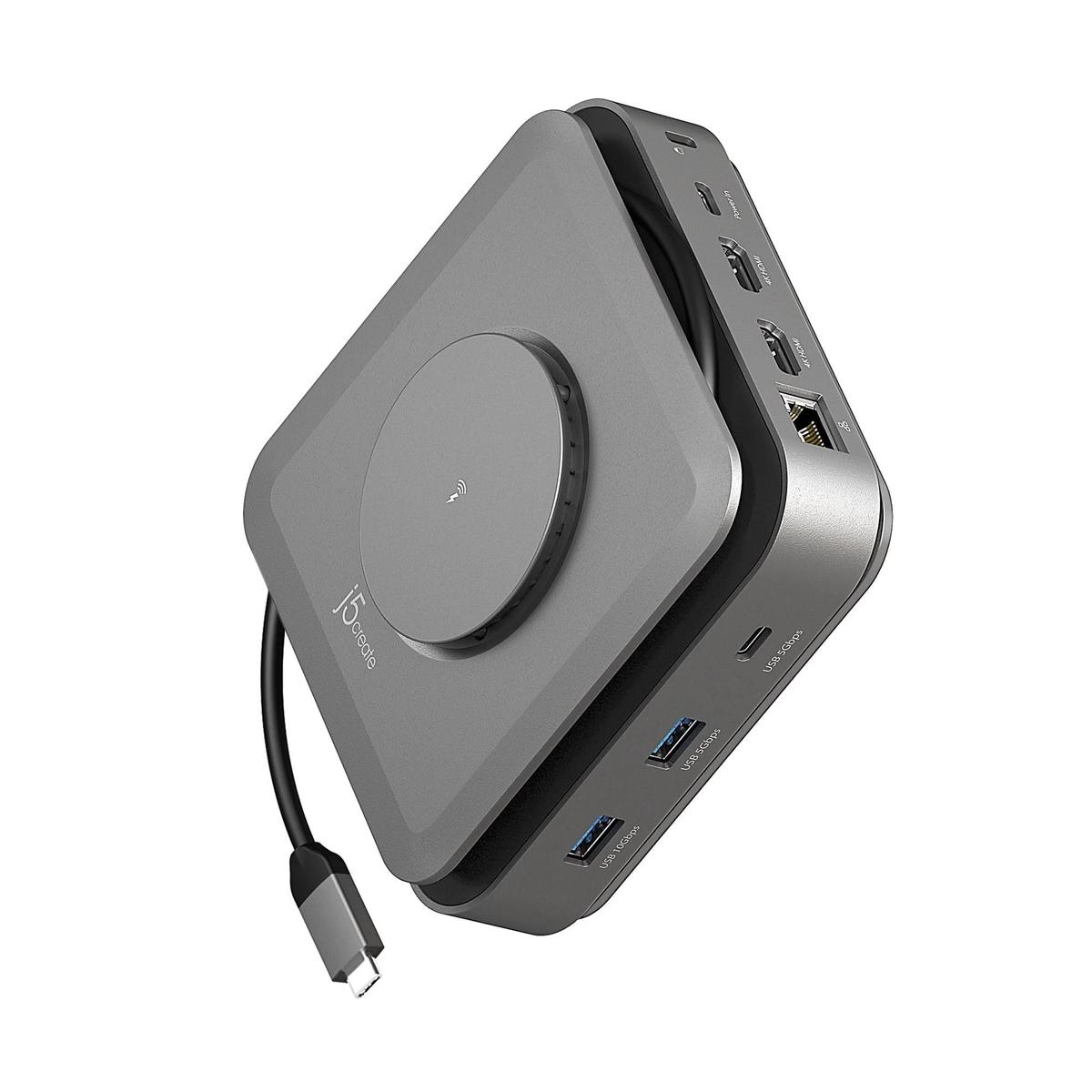

1 – JCD3199 USB-C Dock Dual 4K HDMI |
|
1 – Dock Holder |
|
1 – Quick Installation Guide (QIG) |
