Product Datasheet

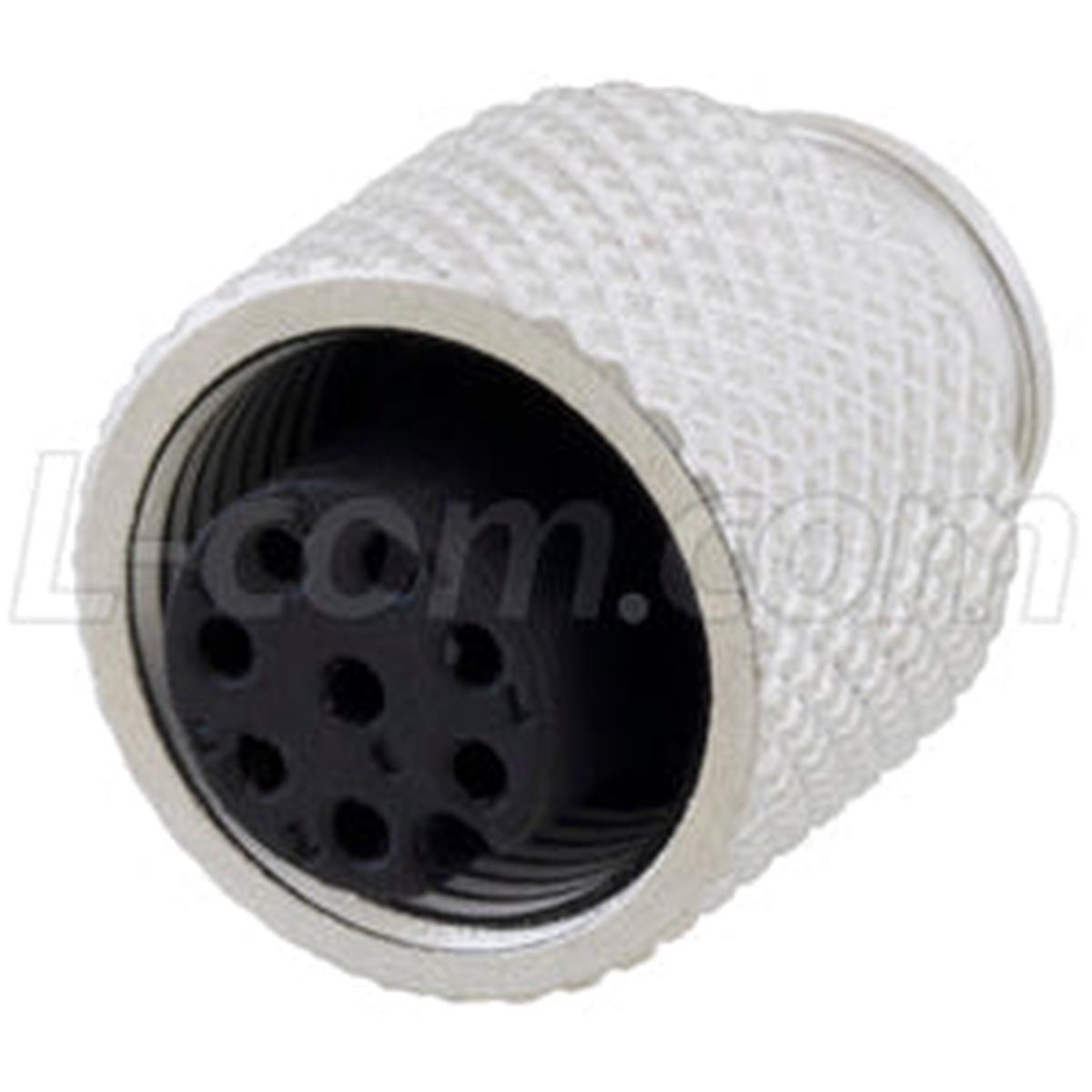

M12 mold connectors with solder cups are now available from L-com. These connectors are appropriate to direct solder to cable and can be over-molded or heat-shrinked. Available in male or female in 8 Position A-code, 4 Position D-Code and 8 Position X-code. The D and X-code connectors are rated for twisted pair or Ethernet applications while A-code is meant for straight wire use. All connectors are shielded and are IP67 or IP68 rated when properly terminated and mated.

Features:

• A-code connectors are IP67 when mated properly and appropriately molded or shrinked
• A-code temp range: -25 to 85 C
• Shield is nickel plate
• Suitable for up to 8 conductor, straight wire applications
• Individually packaged

Applications:

• Fieldbus
• Material handling
• Food and beverage services
• Factory automation controls and equipment
• Sensor and actuators
