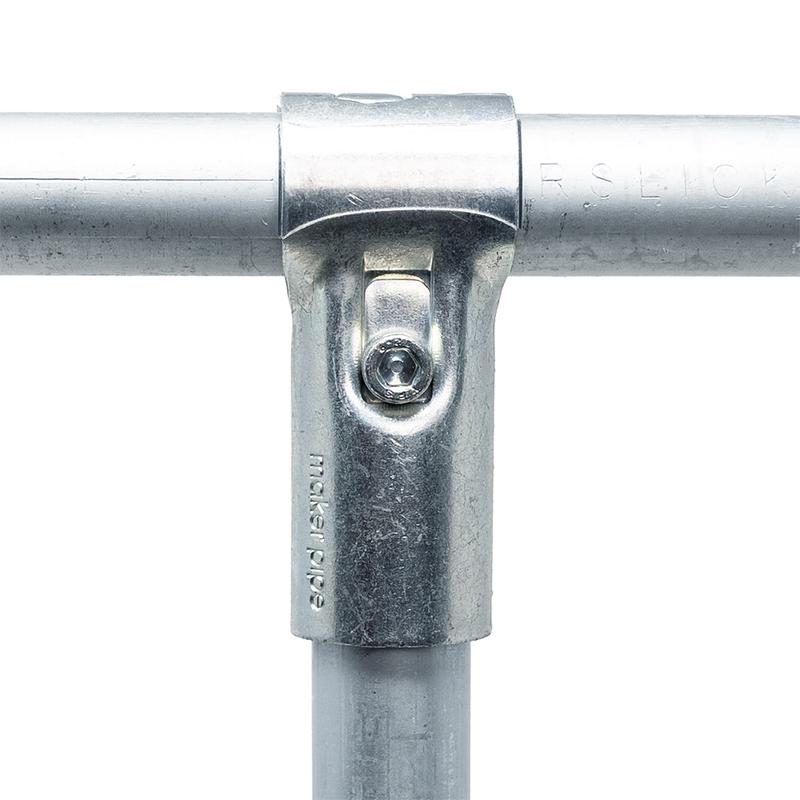

The T Connector is our most popular and versatile structural pipe fitting. It is designed to natively fit electrical conduit which is readily available at your local hardware store. The 3/4″ and 1″ variants will clamp securely to their respective size. The 1/2″ connector variant includes two adapter shims for building with 1/2″ EMT Conduit. The T fitting allows you to easily connect two pipes at a 90 degree angle or use it as an elbow on the ends of conduit. You only need a single 5mm hex wrench for the T Connector assembly.

*Hardware is included with each T connector

T Connector Overview

Features

• STEEL CONSTRUCTION
• CORROSION RESISTANT ZINC-COATING
• POCKET FEATURE
• INTERLOCKING PUZZLE PIECE

Description

The T connector consists of two mirrored pieces that interlock together with a puzzle piece design. The two pieces clamp together with one nut and bolt. The clamp design allows you to quickly change a connection while building or remove and reuse the connectors in a future project. The pocket feature locks the nut into place when tightening, this makes for an easy one tool assembly no matter which side the nut is on.

3/4″ EMT Connector Dimensions

T Connector as an elbow

How To Plan Your Project
